DWK Hi-Vac valve, Right angle, Glass plug, With Viton tip o-ring, 0-4mm bore range, KG-33 Boroailicate glass
£169.90
In stock
SKU
K826460/0004
DWK Hi-Vac valve, Right angle, Glass plug, With Viton tip o-ring, 0-4mm bore range, KG-33 Boroailicate glass
Brand: DWK Code: K826460/0004

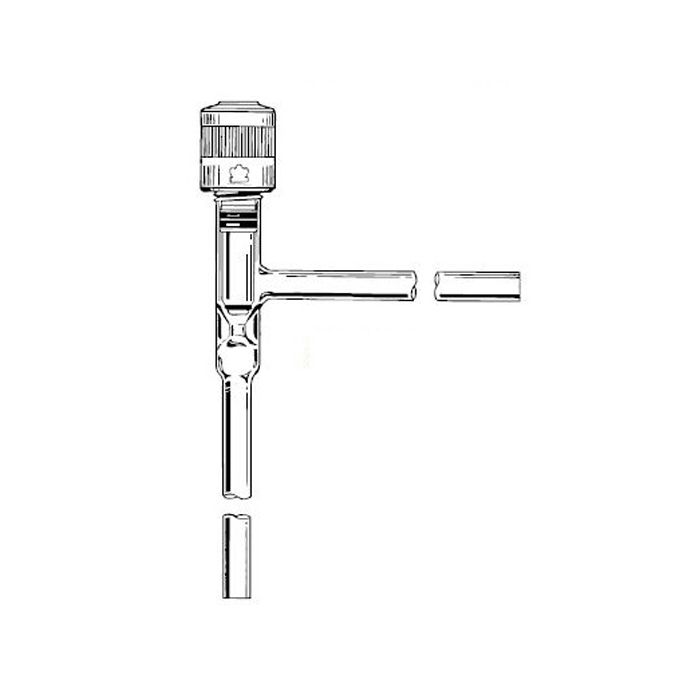

HIGH VACUUM RIGHT-ANGLE VALVES.
This right-angle valve uses a glass plug (as an alternative to PTFE or CTFE) for applications where the out-gassing plug material is undesirable.
.
.
· All plugs are totally interchangeable with other HI-VAC® counterparts.
· Supplied with FKM o-rings.
· For greater solvent resistance, see FFKM listing under o-rings, 758240.
· Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.
Part Number 826460-0004.
Name HI-VAC® Right-Angle Valve with Tip O-Ring and Glass Plug.
Bore Range (mm) 0-4.
Shaft O-Ring Size 107.
Tip O-Ring Size 006.
Stem OD (mm) 9
Specifications
| Stem OD (mm) | 9 |
|---|---|
| Plug Material | Borosilicate Glass 3.3 |
| Bore Size (mm) | 0-4 |
| Pack Size | 1 |
Sold as: single item. Price shown ex. VAT.
