Kartell Filtration And Vacuum Desiccators, Volume 4.35Ltr, OD 200mm, External Height 230mm, Internal Height 175mm, Material PP/PC

FILTRATION AND VACUUM DESICCATORS.
Implosion proof desiccators.
Will take vacuum of -740 mm Hg with loss (absolut zero: -760 mm/HG) not exceeding 20 mm Hg in 24 hours.
The transparent polycarbonate cover seals onto a neoprene ‘0’ ring set into the flange of the PP base.
A little grease spread on the ‘0’ ring will assist in establishing initial vacuum.
Within the desiccator is a removable pan for holding a drying agent.

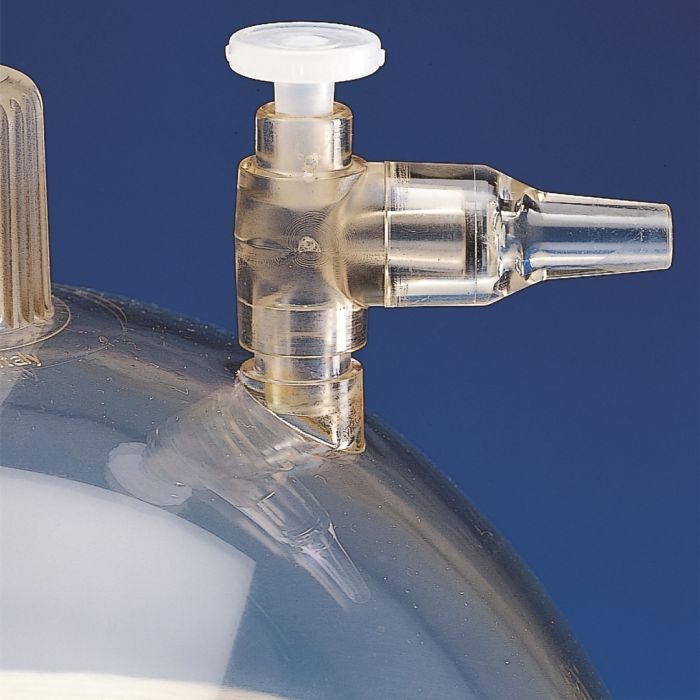

Vacuum release tap/non return valve assembly is included (Art.
229); specially grooved stopper in this assembly allows air, when required, to be re-admitted very slowly to avoid disturbing the contents.
Usage Instructions:.
• remove the cover in PC - insert the samples in the pan.
• open the vacuum retention valve (PE needle) connect the tube of the pump to the dessiccator spigot in order to create vacuum.
• close the vacuum retention valve.
MATERIAL.
PP/PC
